Hydraulic Truck Mounted Crane Shacman M3000 14ton 16ton Construction Service Truck Crane

Payment Terms : 50% Deposit,Balance should be paid before ship out

Maximum Lifting Weight : 14-16t

Type : Straight Arm

Production Capacity : 500 Unit/Month

Crane Jib : Four-Arm

Specification : 12ton, 14ton, 16ton, 18ton

Model Number : EHY

Gearbox : 12forwards & 1reverse

Cargo Thickness : Side 1.5mm, Bottom 2.5mm

Price : 15000-35000 per unit

Shaft Number : 4

HS Code : 8705909990

Certification : ISO 3C

Trademark : EHY

MOQ : 1

Model NO. : EHY5089SCD

Chassis Brand : Dongfeng, Sinotruk HOWO, Foton, FAW, JAC, Jmc, Isu

Transport Package : Naked, Waxed, Bulk Ship, RO-RO

Cargo Material : Q235 Carbon Steel

Name : Truck Mounted Crane

Crane Capacity : 12ton, 14ton, 16ton, 18ton, etc.

Boom Type : Straight 4-Arm Telescopic Boom

Supply Ability : 10unit per month

Maximum Lifting Height : 15-20m

Crane Brand : S-Any, EHY, etc.

Origin : Suizhou, China

Brand Name : EHY

Engine Brand : Huaichai, 336HP

Condition : New

Place of Origin : CHINA

Crane Boom Type : Straight Telescopic Crane, Knuckle Crane

Contact Now

China Shacman 14Ton 16Ton Construction Service Truck Crane with hydraulic telescopic booms

Product Description

1. Purpose: It's used for lifting and transporting all kinds of bulk cargo, and also applied in jetty and construction work.

2. Main parts: Crane. (Different lifting capacities match different chassis.)

3. Advantage: One truck combines the functions of crane and dump truck.

Product Specification

General Technical Parameters
Overall Dimension			12000×2550×3980 (mm)
Gross Vehicle Weight			24900(Kg)
Curb Weight			15800(Kg)
Chassis Specification
Chassis Brand		Shacman
Drive model		8*4
Cabin		Double, Left Hand Driving, with air conditional
Number of Passengers		3
Engine	Model	4-stroke direct injection , 6-cylinder in-line with water cooling, inter-cooling, EGR
	Power	231KW/315HP
	Emission standard	EURO 3
	Displacement	8300(ml)
	Fuel type	Diesel
Gearbox		9Forwards & 1Reverse
Brake System		Air break
Wheel Base		2100+4575+1400 mm
Front/Rear Axle Loading		8000/11500(Kg)
Approach/Departure Angle		23/12(°)
Overhang		1250/3545(mm)
Tire		11.00R20
Max Driving Speed		90(km/h)

Upperstructure Specification
Cargo Body	Dimension		8200×2450×600(mm)
	Material		Q235 carbon steel
	Cargo Thickness		Side 1.5mm, Bottom 2.5mm
Working System	Boom Type		Straight 4-Arm telescopic boom
	Crane	Crane Brand	S-ANY or EHY
		Range of Sprayer	30m
		Max Lifting Moment	25(T.M)
		Max Lifting Capacity	16000(kg)
		Max lifting height	12(m)
		Rotation angle	360(°)
		Installation space	1150(mm)
		Recommented power	30(kw)
		Maximum working pressure	26(Mpa)
		Max Flow	63(l/min)
		Crane weight	3800(kg)
	Oil tank capacity		160(L)
	Leg	Leg type	H type
	Leg	Leg Span	2.28-5.9(m)
	Hydraulic system	Pressure	18(M pa)
	Hydraulic system	Capacity	70(l)
Other Configuration	Control system in 2 side; diamond palt, yellow warning fire; 2.5T arm, etc.
Options	Caution light, air condition, inlet valve, medicine tray, pneumatic valve, cylinder, etc.

Hydraulic Truck Mounted Crane Shacman M3000 14ton 16ton Construction Service Truck Crane

Product Tags:

Hydraulic truck mounted crane 14ton

Shacman M3000 construction crane

Truck mounted crane 16ton with warranty

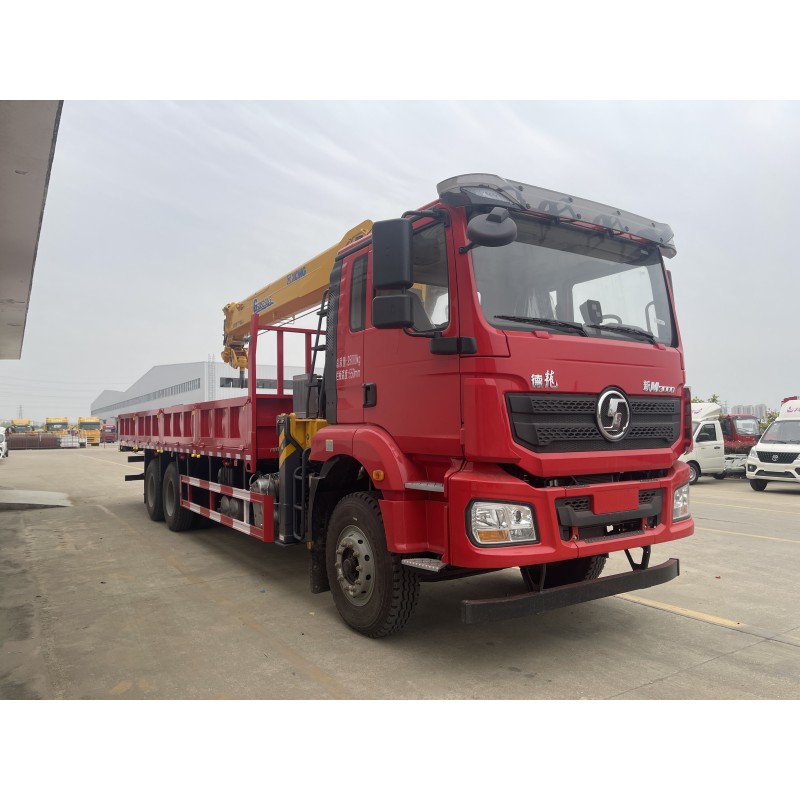

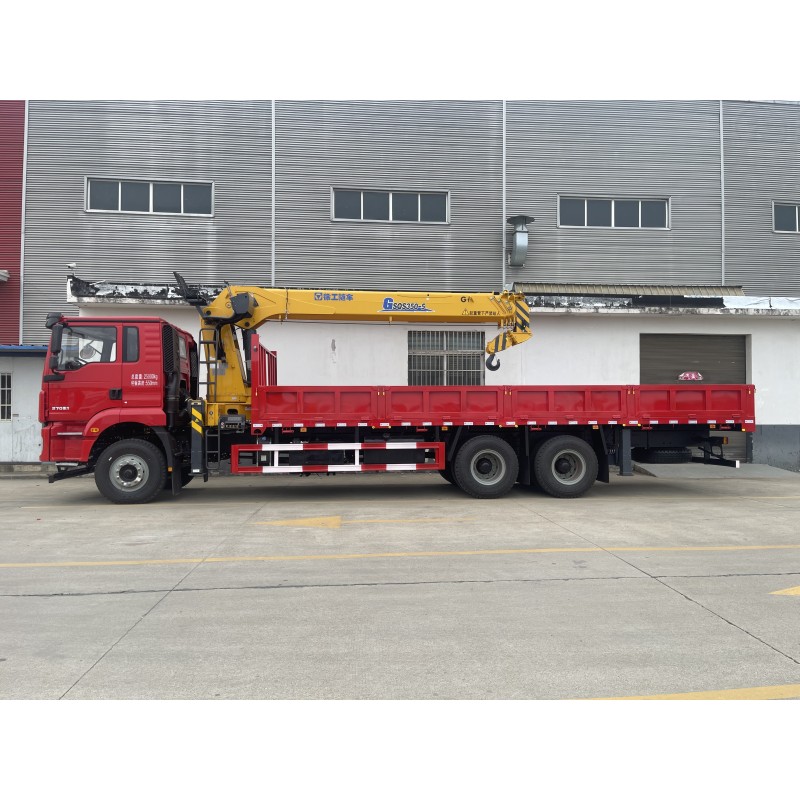

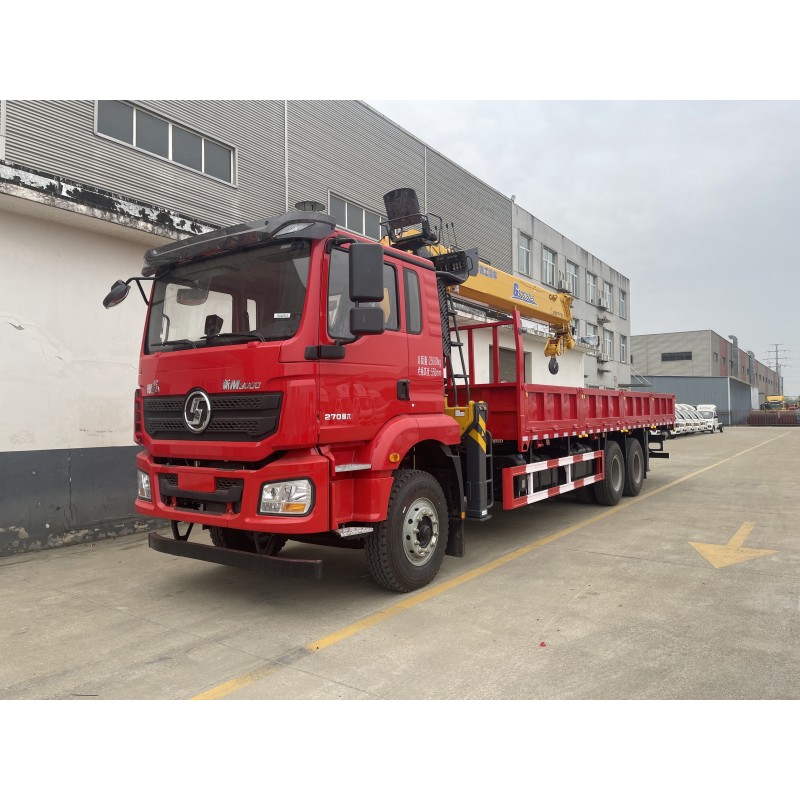

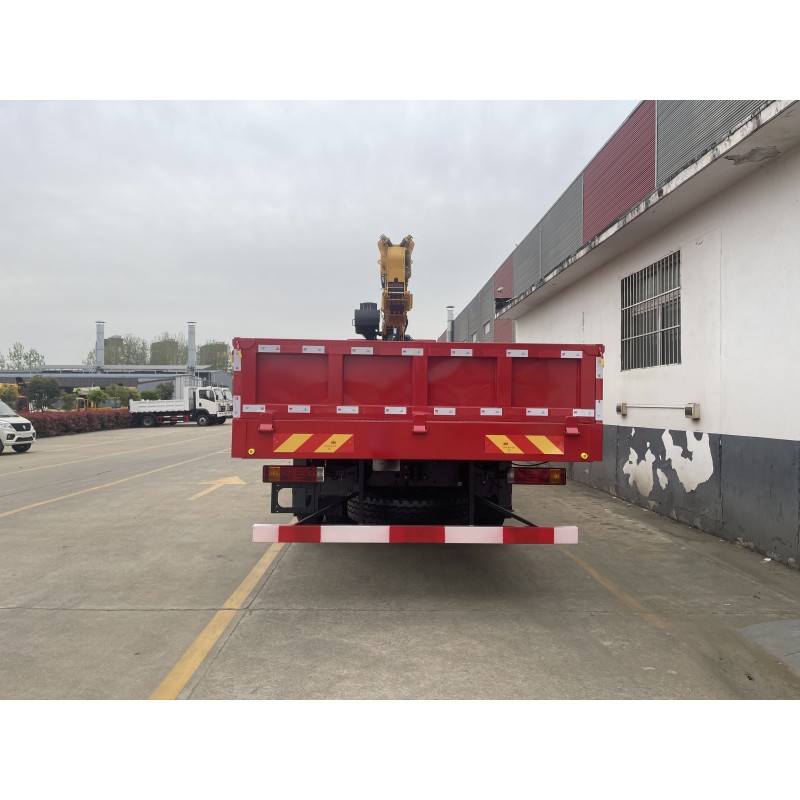

Hydraulic Truck Mounted Crane Shacman M3000 14ton 16ton Construction Service Truck Crane Images
