Isuzu Giga Hino 700 4X2 Folding Arm Crane 8 Tons Truck Mounted

Maximum Lifting Height : 15-20m

HS Code : 8705909990

Cargo Material : Q235 Carbon Steel

Crane Capacity : 5ton, 6ton, 8ton, 9ton, 10ton, etc.

Model Number : EHY

Payment Terms : 50% Deposit,Balance should be paid before ship out

Supply Ability : 10unit per month

Model NO. : EHY5089SCD

Place of Origin : CHINA

Brand Name : EHY

Crane Boom Type : Straight Telescopic Crane, Knuckle Crane

Chassis Brand : Dongfeng, Sinotruk HOWO, Foton, FAW, JAC, Jmc, Isu

Cargo Thickness : Side 1.5mm, Bottom 2.5mm

Certification : GS, RoHS, CE, ISO9001

MOQ : 1

Price : 15000-35000 per unit

Maximum Lifting Weight : 5-7t

Shaft Number : 2

Crane Jib : Four-Arm

Type : Straight Arm

Gearbox : 8forwards & 1reverse

Crane Brand : Xc Mg, EHY, etc.

Transport Package : Naked, Waxed, Bulk Ship, RO-RO

Condition : New

Boom Type : Straight 4-Arm Telescopic Boom

Engine Brand : Yuchai, 180HP

Trademark : EHY

Origin : Suizhou, China

Name : Truck Mounted Crane

Specification : 5ton, 6ton, 8ton, 9ton

Production Capacity : 500 Unit/Month

Contact Now

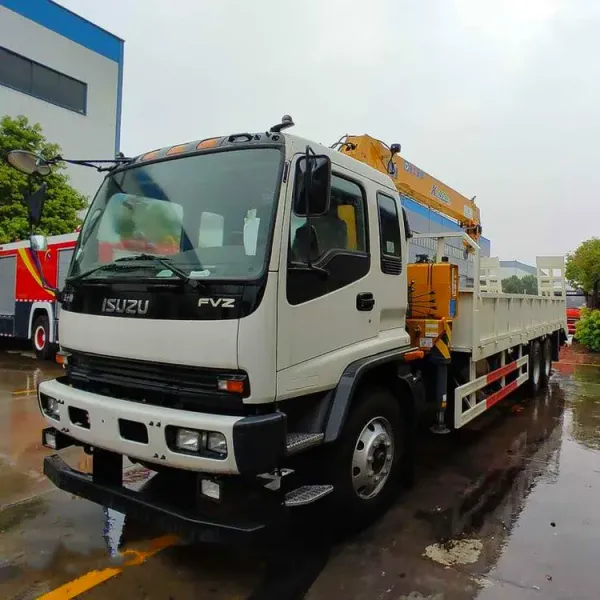

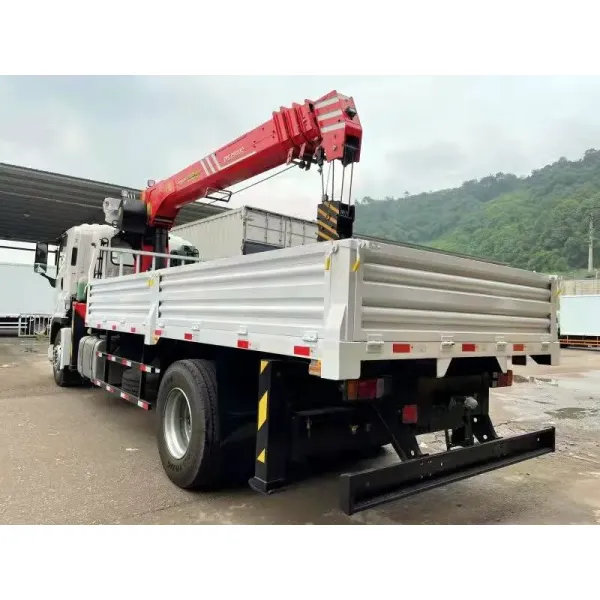

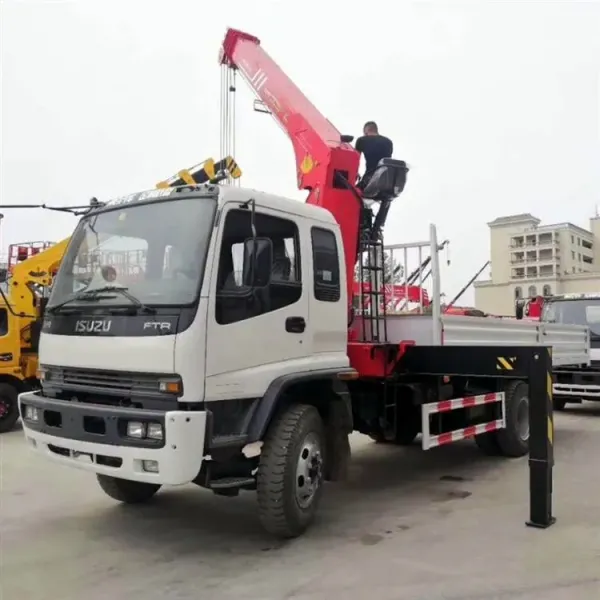

ISUZU GIGA HINO 700 4X2 Folding arm crane 8 tons Truck Mounted with Telescopic Boom Crane truck
Product Description

It's used for lifting and transporting all kinds of bulk cargo, and also applied in jetty and construction work.

Main parts: Crane. (Different lifting capacities match different chassis.)

Advantage: One truck combines the functions of crane and dump truck.

Product Specification
General Technical Parameters
Overall Dimension 9000×2500×3850 (mm)
Gross Vehicle Weight 18500(Kg)
Curb Weight 11380(Kg)
Chassis Specification
Chassis Brand -
Drive model 4*2
Cabin Double, Left Hand Driving, with air conditional
Number of Passengers 3




Engine

 Model 4-stroke direct injection , 6-cylinder in-line with water cooling, inter-cooling, EGR
Power 132KW/180HP
Emission standard EURO 3
Displacement 6500(ml)
Fuel type Diesel
Gearbox 8Forwards & 1Reverse
Brake System Air break
Wheel Base 5100mm
Front/Rear Axle Loading 8000/11500(Kg)
Approach/Departure Angle 23/12(°)
Overhang 1250/3545(mm)
Tire 11.00R20
Max Driving Speed 90(km/h)
Isuzu Giga Hino 700 4X2 Folding Arm Crane 8 Tons Truck Mounted Isuzu Giga Hino 700 4X2 Folding Arm Crane 8 Tons Truck Mounted Isuzu Giga Hino 700 4X2 Folding Arm Crane 8 Tons Truck Mounted Isuzu Giga Hino 700 4X2 Folding Arm Crane 8 Tons Truck Mounted Isuzu Giga Hino 700 4X2 Folding Arm Crane 8 Tons Truck Mounted Isuzu Giga Hino 700 4X2 Folding Arm Crane 8 Tons Truck Mounted
Isuzu Giga Hino 700 4X2 Folding Arm Crane 8 Tons Truck Mounted
Isuzu Giga Hino 700 4X2 Folding Arm Crane 8 Tons Truck Mounted

Isuzu Giga Hino 700 4X2 Folding Arm Crane 8 Tons Truck Mounted
Isuzu Giga Hino 700 4X2 Folding Arm Crane 8 Tons Truck Mounted

Products Catalog:
  • LPG Tank Truck Trailer/ Fuel Tanker Truck/ LPG station
  • Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
  • Truck with crane / Truck mounted crane
  • Dump Truck / Tipper Truck/Side Tipper/End Tipper
  • Fire Fighting Truck / Fire Truck / Fire Vehicle
  • Concrete Mixer Truck
  • Van truck /Refrigerated truck
  • Fecal suction truck / Sewage suction truck,
  • Cement Powder Tank truck/ Bulk cement truck
  • High-altitude operation truck,
  • Self-loading garbage truck, garbage compactor truck, sealed garbage truck
  • Tractor
  • High Pressure Cleaning Truck
  • Sweeper Truck
  • Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
