Dongfeng Heavy Duty 10 Wheels Truck Mounted Hydraulic Crane 6*4

Type : Straight Arm

Crane Weight : 4316kg

Color and Logo : Customized

Production Capacity : 500 Unit/Month

HS Code : 8704224000

Place of Origin : CHINA

Brand Name : EHY

Shaft Number : 3

Delivery Time : 30 Days

Gearbox : Manual

Max. Lifting Capacity : 12tons

Trademark : EHY

Flatbed Dimensions : 8450*2300*550mm

MOQ : 1

Price : 15000-35000 per unit

Maximum Lifting Height : 10-15m

Maximum Lifting Weight : 11-13t

Model NO. : EHY5205K3MWY

Crane Jib : Four-Arm

Chassis : Dongfeng, Foton, HOWO, etc.

Origin : Suizhou, China

Model Number : EHY

Payment Terms : 50% Deposit,Balance should be paid before ship out

Supply Ability : 10unit per month

Condition : New

Max Lifting Height : 15m

Name : Truck Mounted Hydraulic Crane

Working Radius : 13m

Transport Package : Naked, Waxed, Bulk Ship, RO-RO

Specification : 11900*2500*3850mm

Crane Rotation Angle : 360 Degree

Contact Now

China Truck Dongfeng 6*4 Heavy Duty 10 Wheels Hydraulic Crane Lifting Crane Machine Truck Mounted Lifting Crane
Description:
  • Crane Brand: Chinese Famous Brand
  • Heavy Duty Cargo box.
  • H Shape Hydraulic front & Rear Leg for safety.
  • Folded Arm & Telescopic Straight Arm Crane for option.
  • Crane capacity of truck mounted 12t telescopic boom crane:2ton,2.5ton,3.2ton,4ton,5ton,6.3ton,8ton,10ton,12ton, 14ton,16ton,20ton,25ton
General Technical Parameters
Overall Dimension 11900x2500x3850 (mm)
Gross Vehicle Weight 25000kg
Curb Weight 15000kg
Chassis Specification



















Chassis Parameters

 Chassis Brand Dongfeng
Cabin Left Hand Driving, with A/C
ABS System Equipped





Engine

 Model 6 Cylinders
Power 210hp
Emission standard EURO V
Displacement 6.7L
Fuel type Diesel
Gearbox 9 Forward & 1 Reverse Gear
Front and Rear Axle load 7T/10T
Wheel base 5700+1300(mm)
Overhang( Front/Rear) 1460/2350(mm)
Angle(Approach/departure) 20/16(°)
Brake System Air Brake
Steering Gear Power Assistant
Tire 11.00R20, 10 Pieces with 1 Spare Tire
Maximum speed 90(km/h)
Superstructure
Flatbed Flatbed dimensions 8450x2300x550(mm)







Working System







Crane

 Brand Chinese Famous Brand
Boom Type Telescopic Boom
Max lifting weight 12,000(kg)
Max lifting height 15(m)
Max working range 13(m)
Rotation angle 360 degree full rotation
    Crane Weight 4361kg
Installation space 1150(mm)
Outrigger 2 pcs, Front leg
Operation Hydraulic control, with Aerial Seat
Optional Parts 1. Remote control
2. Rear leg

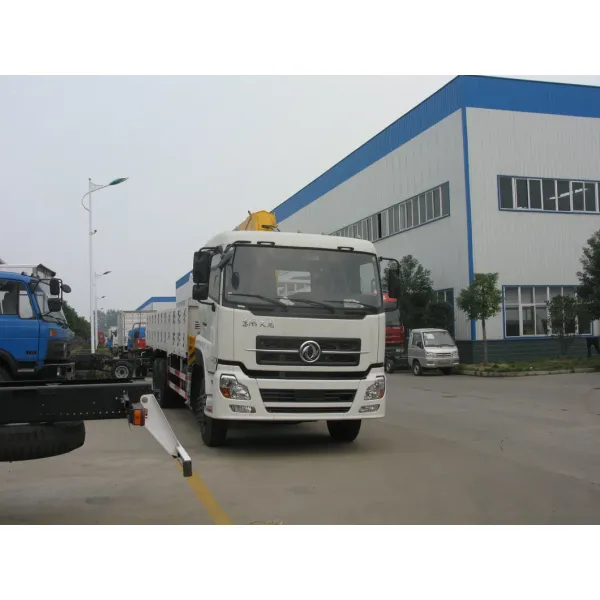

Dongfeng Heavy Duty 10 Wheels Truck Mounted Hydraulic Crane 6*4

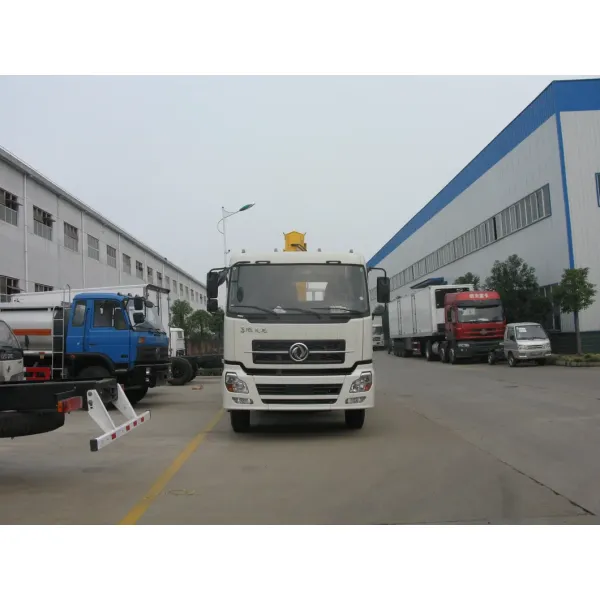

Dongfeng Heavy Duty 10 Wheels Truck Mounted Hydraulic Crane 6*4

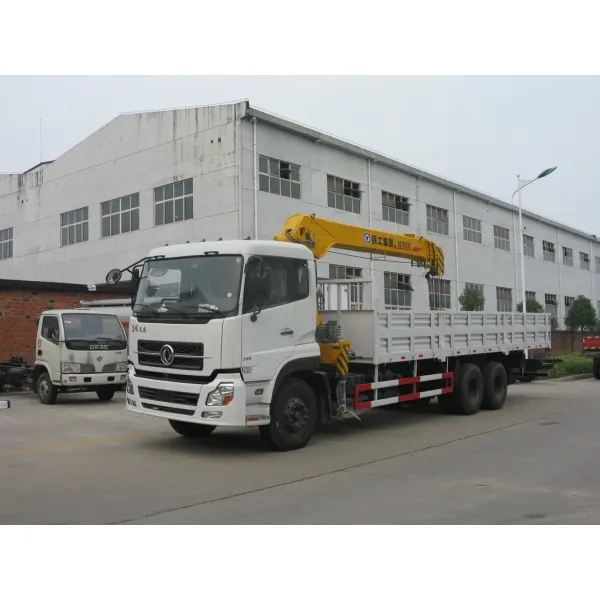

Dongfeng Heavy Duty 10 Wheels Truck Mounted Hydraulic Crane 6*4
Dongfeng Heavy Duty 10 Wheels Truck Mounted Hydraulic Crane 6*4
Dongfeng Heavy Duty 10 Wheels Truck Mounted Hydraulic Crane 6*4
Dongfeng Heavy Duty 10 Wheels Truck Mounted Hydraulic Crane 6*4
Dongfeng Heavy Duty 10 Wheels Truck Mounted Hydraulic Crane 6*4
Dongfeng Heavy Duty 10 Wheels Truck Mounted Hydraulic Crane 6*4
Dongfeng Heavy Duty 10 Wheels Truck Mounted Hydraulic Crane 6*4
Dongfeng Heavy Duty 10 Wheels Truck Mounted Hydraulic Crane 6*4
