Sinotruk HOWO Telescopic Boom Truck Mounted Crane 5 Ton For Construction Material Transportation

Max. Lifting Capacity : 8000 Kg

Production Capacity : 500 Unit/Month

Condition : New

HS Code : 8705909990

Name : Telescopic Boom Truck Mounted Crane

Model NO. : EHY5741XE

Place of Origin : CHINA

Brand Name : EHY

Specification : 8215x2500x3850 mm

Maximum Lifting Weight : 5-7t

Working Radius : 8.6 M

MOQ : 1

Price : 15000-35000 per unit

Rotation Angle : 360 Degree All Rotation

Max Lifting Height : 12m

Logo : as Per Customer's Request

Installation Space : 2280-5100mm

Type : Straight Arm

Model Number : EHY

Payment Terms : 50% Deposit,Balance should be paid before ship out

Supply Ability : 10unit per month

Gearbox : 6 Forward & 1 Reverse Gear

Crane : 5ton

Trademark : EHY

Transport Package : Naked, Waxed, Bulk Ship, RO-RO

Shaft Number : 2

Crane Jib : Three-Arm

Chassis : HOWO

Engine : 168 HP

Crane Weight : 5000 Kg

Origin : Suizhou, China

Maximum Lifting Height : 10-15m

Contact Now

Sinotruk HOWO 5tons Truck Mounted Telescopic Boom Crane for Construction Material Transportation

Product Description:

Crane Brand of truck mounted straight arm crane: EHY, PALFINGER, Other Chinese Brand
Heavy Duty Cargo box.
H Shape Hydraulic front & Rear Leg for safety.
Folded Arm & Telescopic Straight Arm Crane for option.
Crane capacity of truck mounted straight arm crane:2ton,2.5ton,3.2ton,4ton,5ton,6.3ton,8ton,10ton,12ton,
14ton,16ton,20ton,25ton

Chassis Specification
Item No.	Parameters
Chassis Brand	HOWO
Overall Dimension	8215X2500X3850mm
Gross Vehicle Weight	15795 kg
Curb Weight	8450 kg
Loading Weight	5805 Kg
Front/rear axle loading capacity	5000/7200kg
Wheel Base	4500 mm
Cabin	Single, Left Hand Driving, 2 Passenger Allowed
Engine	Type	Diesel Engine
	Engine horsepower	168HP EURO II
Gearbox	Manual , 6 Forward & 1 Reverse Gear
Brake System	Air Brake
Steering Gear	Power Assistant
Tire	9.00-20, 6 Pieces with 1 Spare
Max Driving Speed	90 km/h

Cargo compartment
Material	Q235
Dimension	5070X2400X600mm
Thickness	3mm for side /4 mm for the bottom
Technical parameter of crane
Crane Model	5 Ton 3 Arms Telescopic Boom Crane
Crane Weight	2120 kg
Max. Lifting capacity	5000 kg
Max lifting height	12 M
Working radius	8.6 M
Outrigger span	2280-5100mm
Rotation angle	360°All rotation
Optional	1. Seat 2. Hydraulic Lift system 3. Landing Leg
Remarks	1. Color is optional 2.Customized LOGO painting as per customer request

Sinotruk HOWO Telescopic Boom Truck Mounted Crane 5 Ton For Construction Material Transportation

Products Catalog:

LPG Tank Truck Trailer/ Fuel Tanker Truck/ LPG station
Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
Truck with crane / Truck mounted crane
Dump Truck / Tipper Truck/Side Tipper/End Tipper
Fire Fighting Truck / Fire Truck / Fire Vehicle
Concrete Mixer Truck
Van truck /Refrigerated truck
Fecal suction truck / Sewage suction truck,
Cement Powder Tank truck/ Bulk cement truck
High-altitude operation truck,
Self-loading garbage truck, garbage compactor truck, sealed garbage truck
Tractor
High Pressure Cleaning Truck
Sweeper Truck
Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )

Product Tags:

Telescopic Boom Truck Mounted Crane

5 Ton Truck Mounted Crane

5T Truck Mounted Crane

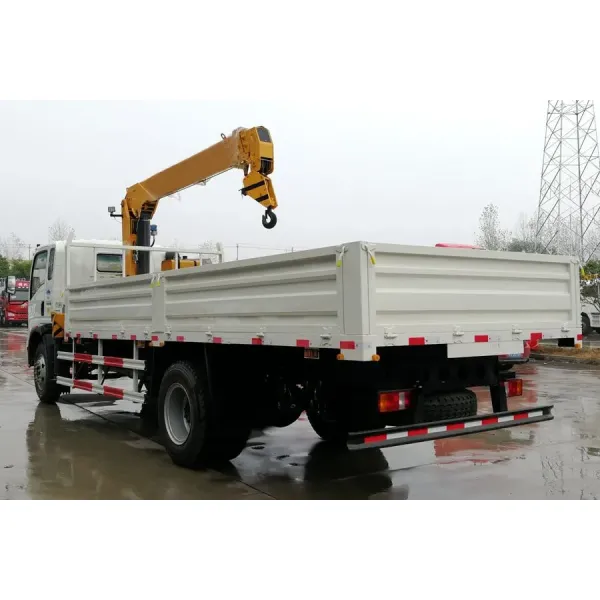

Sinotruk HOWO Telescopic Boom Truck Mounted Crane 5 Ton For Construction Material Transportation Images
