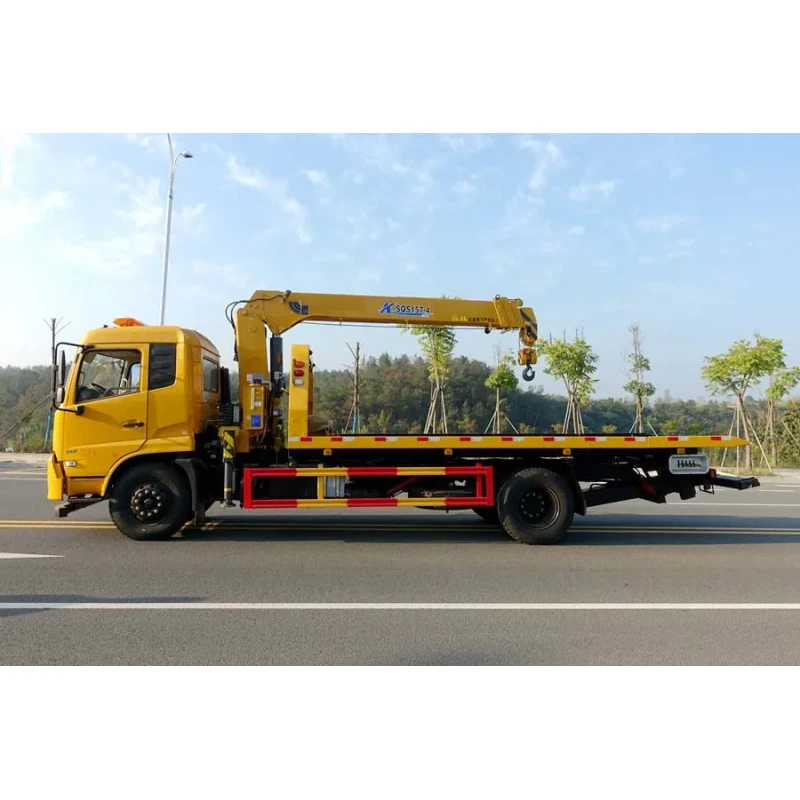

Dongfeng 5tons 6tons 8tons Road Wrecker Road Platform Towing Wrecker for Sale
Product Description:
1. Purpose of 4ton flatbed tow truc: wrecker/recovery truck/towing truck is used for towing broken cars,vehicle on road.With increasing ownership of private cars,wreckers are now widly used by government organization or towing company.
2. Optional brand of 4ton flatbed tow truc:howo,Dongfeng,JAC,JMC,Foton,Shacman...
3. Spare parts of 4ton flatbed tow truc: Italy brand multi-way valve and balance valve; Gernamy Roxroth technology hydraulic cylinder and joint; imported sealing element; strengthed checked plate
4. Capacity range of flatbed tow truc:3ton, 4ton, 5ton, 6ton, 8ton, 12ton, 16ton, 20ton, 25ton, 31ton, 40ton, 50ton
| General Technical Parameters |
| Overall Dimension |
9440x2480x2760 (mm) |
| Gross Vehicle Weight |
12495kg |
| Curb Weight |
10000kg |
| Chassis Specification |
|
Chassis Parameters
|
Chassis Brand |
Dongfeng |
| Cabin |
Row and half, Right Hand Driving |
|
Engine
|
Model |
ISD180 50, 4 Cylinders |
| Power |
132KW/180HP |
| Emission Standard |
EURO V |
| Displacement |
4.5L |
| Fuel Type |
Diesel |
| Gearbox |
6 Forward & 1 Reverse Gear |
| Front and Rear Axle Load |
4.5T/9T |
| Wheel Base |
4700(mm) |
| Overhang( Front/Rear) |
1015/2450(mm) |
| Angle(Approach/departure) |
24/9(°) |
| Brake System |
Air Brake |
| Steering Gear |
Power Assistant |
| Tire |
9.00R20, 6 Pieces with 1 Spare Tire |
| Maximum Speed |
110(km/h) |
| Superstructure |
|
Flatbed
|
Dimensions |
6000x2400 (mm) |
| Max. Loading Weight |
8000(kg) |
| Operating Stroke |
2700 (mm) |
| Min. Angle of Slope |
8(°) |
| Platform Height from the Ground |
1070(mm) |
| Winch |
|
Winch
|
Quantity |
1pc |
| Winch Rating Pulling Capacity |
6000 (kg) |
| Length of Steel Cable |
35 (m) |
| Hoisting Organ |
|
Hoisting Organ
|
Rating Under-Pulling Capacity |
6000 (kg) |
| Rating Under-Hoisting Capacity |
2000 (kg) |
| Fully Extended Max Under-Hoisting Capacity |
1600 (kg) |
| Max Under-Hoist Useful Length |
1640 (mm) |
| |
|
|
| Boom Type |
Telescopic Boom |
|
Remarks
|
1. Equiped with One Set of Auxiliary Wheels
2. Bandages 4pcs
3. Yellow Warning Lamp 1pc
4. Double Side Hydraulic Operation
5. Can Tow 2 Cars
6. Outrigger 2pcs |
| Parameters of the Crane |
| Item |
Unit |
Value |
| Max Lifting Capacity |
kg |
8000@2.5m |
| Max lifting height |
M |
14 |
| Max working range |
M |
11.5 |
| Max Lifting Moment |
T.M |
20 |
| Recommend Power |
kw |
27 |
| Max Oil Flow of Hydraulic System |
L/min |
55 |
| Max Pressure of Hydraulic System |
Mpa |
27 |
| Oil Tank Capacity |
L |
160 |
| Crane Weight |
kg |
3315 |
| Installation Space |
mm |
1200 |
| Rotation Angle |
° |
360° All Rotation |
